Following there is a selection of reference projects from the last ten years which are carried out by Hunger Hydraulik. For these projects similar technologies like special piston rod coatings are used and they have been milestones for its industry sector because of size, importance or unique technical solution.
This selection shows only some highlights from the last years. Please see also our reference lists for different industry sectors.

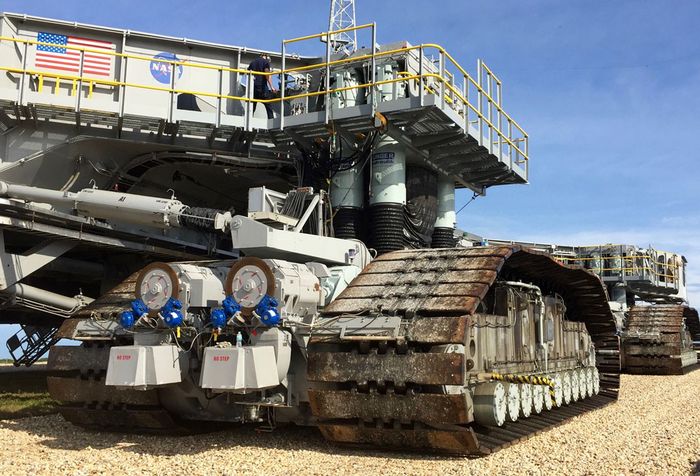

| Description: | JEL LinearActuator |
|---|---|
| Cylinder no. and size: | 22 pieces Ø 580 / 500 x 2006mm |
| Operating Pressure: | 245 bar |
| Push Force: | 6,314 kN |
| Special: | Cylinders with piston rod coating Hunger Ceraplate, a safety manifold block and Hunger seal and bearing ring elements |
| Comments: | Cylinders have self-lubricated spherical ball mounts on both ends of the cylinder. They are used in a very aggressive sea air environment. |
