Following there is a selection of reference projects from the last ten years which are carried out by Hunger Hydraulik. For these projects similar technologies like special piston rod coatings are used and they have been milestones for its industry sector because of size, importance or unique technical solution.
This selection shows only some highlights from the last years. Please see also our reference lists for different industry sectors.

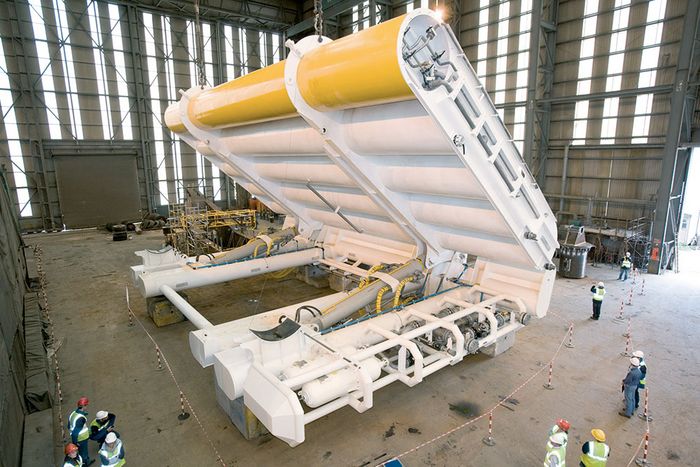

|wave driven vertical flap is connected with two hydraulic pump cylinders
|Cylinder no. and size:
|2 pieces Ø 400 x 300 x 4000 mm
3 pieces Ø 590 x 350 x 4000 mm
|fully submerged cylinders with piston rod coating Hunger Ultraplate, with maintenance free spherical bearings and designed to work with water fluid
|Cylinders are designed for a service life time of five years which corresponds to approx. 25 million cycles
