Machining Cababilities –

Lathes up to 22000Lbs and
Mills up to 33000LbS

As a full service manufacturer of hydraulic cylinders Hunger Hydraulics USA also offers milling and turning services. At our machine shop Rossford, Ohio we are competitive producing one off parts as well as huger series

Producing high quality products requires the highest manufacturing technology available today.

Hunger Hydraulics C C. Ltd. meets these standards with quality processes starting with precision milling and turning machines that have capabilities up to 48 in. in diameter and 39 ft in length.

Hunger CC has a manufacturing site of 65,000 sq-ft. Hunger Hydraulics has developed and patented honing processes for obtaining micro finishes of 0.1 micron, even at rapid honing rates.

The Hunger Group is certified to ISO 9001:2008 quality standards and Hunger Hydraulics USA complies with these processes.

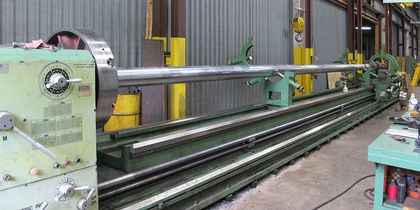

Lathes	Chuck Size	Max Swing	Max Turn	Center Distance	Weight capacity
Lathe VDF 1 Meter	10"/250mm	14"/356mm	9"/230mm	39.4"/1000mm	1000Lbs/ 500kg
Knuth 3 Meter	12"/300mm	22"/560mm	14"/356mm	120"/3000mm	3000Lbs/ 1500kg
PUMA CNC Lathe	12"/300mm 15"/380mm	23.2"/590mm	15.8"/400mm	50.4"/1280mm	3000Lbs/ 1500kg
Lathe big USSR 3 Meter	39.4"/1000mm	39.4"/1000mm	24.8"/630mm	120"/3000mm	11000Lbs/ 5000kg
Lathe Microcut 12 Meter	36"/915mm	40"/1016mm	29"/740mm	472"/12000mm	17600Lbs/ 8000kg
Lathe PKII 60/200	48"/1220mm	60"/1520mm	47.25"/1200mm	200"/5000mm	22000Lbs/ 10000kg

Mills	Table Size	Travels	RPM	Weight capacity
CNC Horizontal Boring Mill Doosan DBC 130	63"x70.9" 1600mm x 1800mm	X:118.1"/3000mm Y:78.7"/2000mm Z:63"/1600mm W:27.6"/700mm Full B-axis Rotary Table	2500	33000Lbs/ 15000kg
CNC Bed Mill RTM 100	30"x112" 760mm x 2845mm	X:98.4"/2500mm Y:35"/890mm Z:28"/710mm	4000	4400Lbs/ 2000kg
CNC-Bed Mill BTM 40	16"x54" 400mm x 1370mm	X:40"/1016mm Y:20"/508mm Z:27"/686mm	4000	2200Lbs/ 1000kg
Microcut-Bed Mill	16"x54" 400mm x 1370mm	X:40"/1016mm Y:20"/508mm Z:27"/686mm	3600	2200Lbs/ 1000kg
Bridgeport Mill	9"x48" 230mm x 1220mm	X:36"/915mm Y:13"/330mm Z:20"/508mm	3500	750Lbs/ 340kg

Hunger utilizes certified welders for MlG, TlG, sub arc and solid rod welding. As required, welded seams are inspected with ultrasound by approved and certified inspectors.

Material Handling Equipment:
Forklifts: up to 40,000lb capacity
Overhead Cranes: up to 30,000lb capacity
Transportation: up to 17,000lb capacity and 25’ length (7.6m)
Cylinder Testing: up to 10,000Psi with full digital recording
Calibrated Measuring: Portable CMM Machine, O.D. Mic to 1,300mm and I.D. Mic to 2,000mm
Design: AutoCAD Mechanical and Creo 3D CAD
Welding: Stick, Tig, Mig up to 300 Amps and Sub Arc up to 650 Amps
