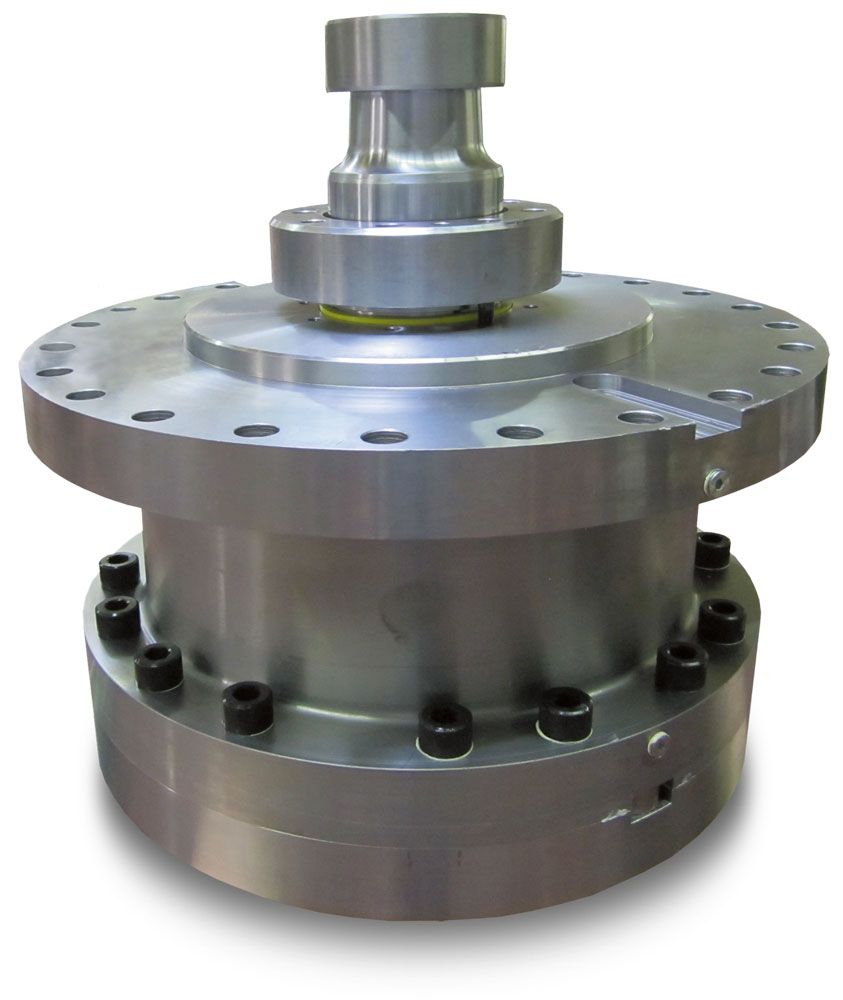

Mandrel expansion cylinders

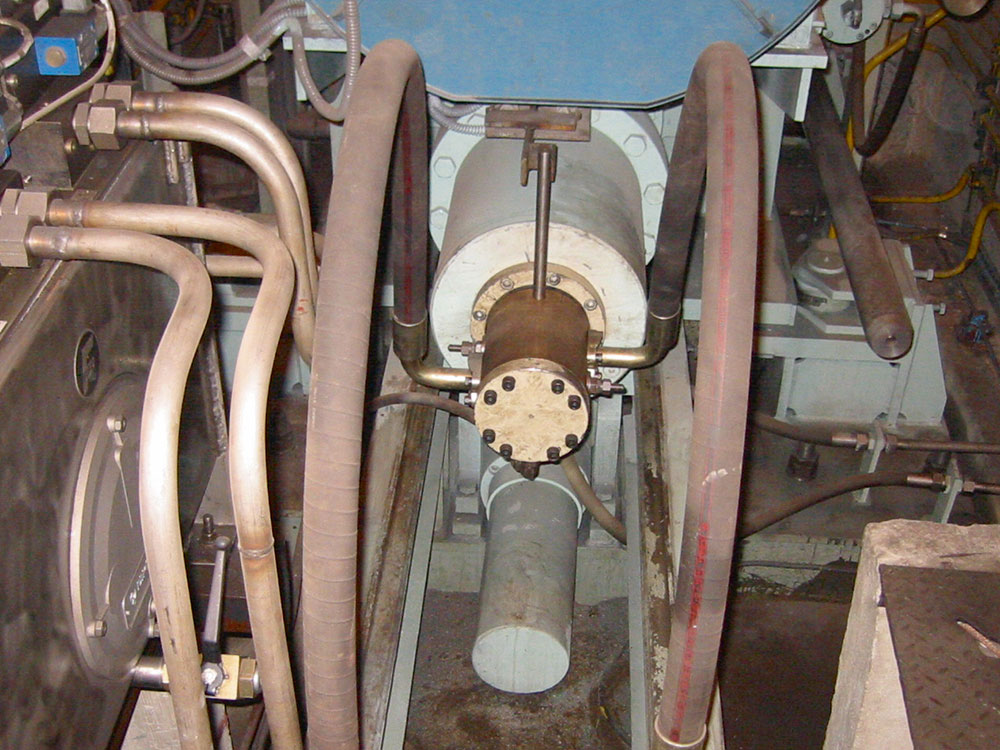

Mandrel expansion cylinders rotate with the mandrel and coil and therefore require a hydraulic rotary distributor to be flanged to the cylinder bottom to feed oil into the cylinder.

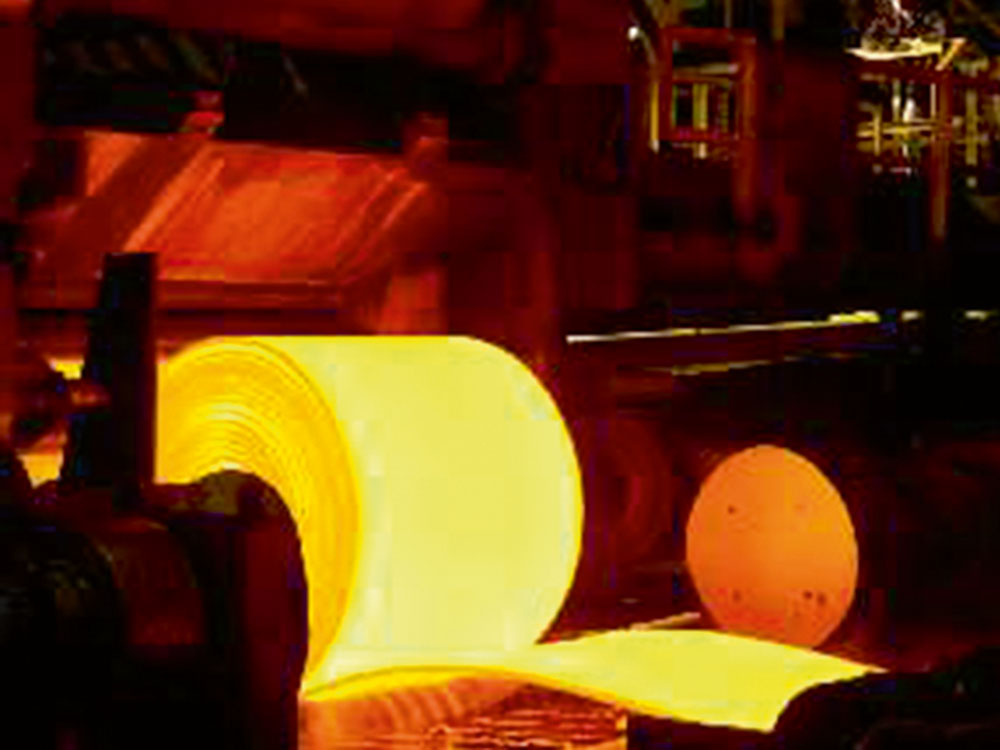

Mandrel expansion cylinders rotate with the mandrel and coil and therefore require a hydraulic rotary distributor to be flanged to the cylinder bottom to feed oil into the cylinder. The cylinder and the rotary distributor must perform reliably and well at changing rotation speeds and the clamping pressure in the cylinder must be maintained at all times throughout the steel sheet coiling process.

  • Oil feed channels integrated into the cylinder body
  • Hunger DFE-low friction seals and bearing elements
  • Hunger rotary distributor flanged to cylinder bottom
  • Hunger rotary distributor with two or more channels for rotation speeds up to 400 min -1
  • Integrated position measuring systems available
